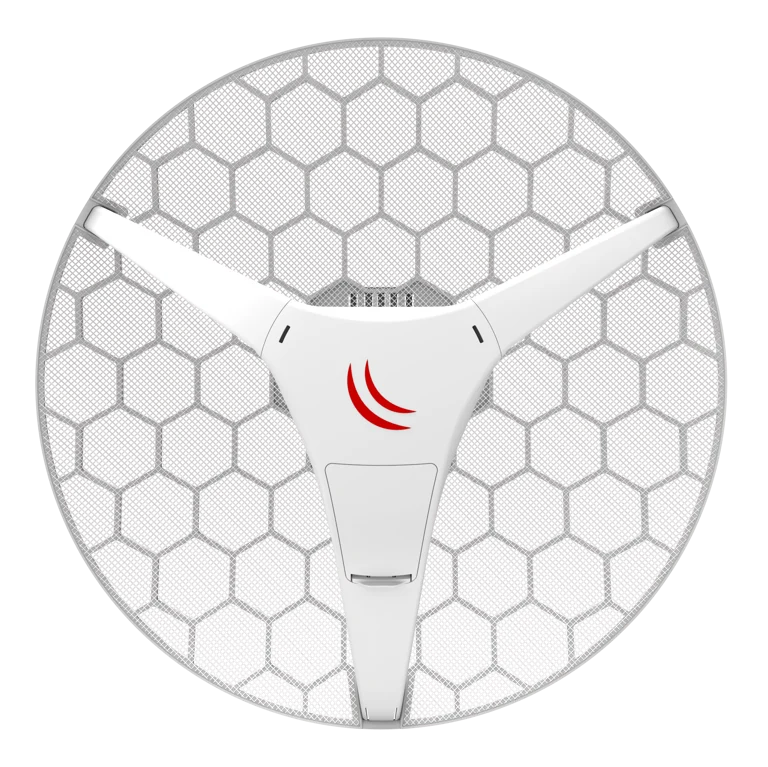

Mikrotik LHG HP5

Mikrotik LHG HP5 Price in Kenya – High-Power 24.5 dBi Long-Range Outdoor Wireless BridgeMikrotik LHG HP5 Price in Kenya

The Mikrotik LHG HP5 is a high-performance 5 GHz outdoor wireless bridge engineered for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless networking. Equipped with a 24.5 dBi dual-polarized grid antenna and a high-power 630 mW wireless radio, it delivers stronger signal transmission than the standard LHG 5, enabling significantly longer and more reliable wireless links. It is widely deployed by wireless Internet Service Providers (WISPs), enterprise networks, CCTV surveillance systems, industrial sites, schools, farms, and rural broadband providers.

The LHG HP5 is powered by a 600 MHz Atheros AR9344 processor, 64 MB RAM, 16 MB Flash, and runs RouterOS Level 3. It supports 802.11a/n dual-chain wireless, offering wireless speeds of up to 300 Mbps while maintaining excellent RF performance over long distances. The integrated grid antenna eliminates RF cable losses and reduces wind loading, making it ideal for permanent outdoor installations.

Designed for professional deployments, the Mikrotik LHG HP5 combines outstanding wireless performance, low power consumption, enterprise RouterOS features, and rugged outdoor construction into an affordable solution for reliable long-distance connectivity.

Why Choose the Mikrotik LHG HP5?

Key Benefits

• High-power 630 mW wireless radio

• 24.5 dBi integrated grid antenna

• Long-distance point-to-point connectivity

• 802.11a/n dual-chain wireless

• RouterOS Level 3

• Passive PoE support

• Lightweight grid reflector

• Low wind resistance

• Weather-resistant IP54 enclosure

• Excellent value for WISP deployments

Mikrotik LHG HP5 Technical SpecificationsSpecificationDetailsProduct NameMikrotik LHG HP5Product CodeRBLHG-5HPnDCPUAtheros AR9344CPU Frequency600 MHzCPU Cores1ArchitectureMIPSBERAM64 MBStorage16 MB FlashWireless Standard802.11a/nAntenna Gain24.5 dBiEthernet Port1 × 10/100 MbpsRouterOS LicenseLevel 3 Features & BenefitsFeatureBenefit24.5 dBi AntennaLong-range wireless coverage630 mW TX PowerStronger wireless signalDual PolarizationImproved throughputRouterOSEnterprise networking featuresPassive PoEEasy installationGrid ReflectorReduced wind loadingOutdoor DesignReliable all-weather operationLow Power ConsumptionReduced running costsIntegrated RadioNo RF cable lossesDirectional BeamReduced interference Recommended ApplicationsApplicationSuitabilityPoint-to-Point LinksExcellentWireless ISP NetworksExcellentCCTV BackhaulExcellentRural BroadbandExcellentFarm ConnectivityExcellentCampus NetworksExcellentIndustrial FacilitiesExcellentMining SitesExcellentWarehouse NetworksExcellentBuilding-to-Building LinksExcellentPerformance HighlightsFeaturePerformanceWireless SpeedUp to 300 MbpsAntenna Gain24.5 dBiTX PowerUp to 630 mWLink DistanceUp to 30 km*Ethernet10/100 MbpsPoE InputPassive PoE (10–28V)Maximum Power7 WTemperature-40°C to +70°CProtection RatingIP54Beam WidthApproximately 10.4°

*Actual range depends on terrain, antenna alignment, interference, and line-of-sight conditions.

Mikrotik LHG HP5 Price Guide in KenyaPackageEstimated Price (KES)LHG HP5 Only11,500 – 18,000Device + Configuration13,500 – 20,000Device + Installation16,000 – 24,000Pair for PtP Link25,000 – 38,000Enterprise DeploymentRequest QuoteKey Features

High-Power Wireless Radio

The LHG HP5 features a 630 mW high-power transmitter, providing nearly twice the transmit power of the standard LHG 5. This improves signal strength, link stability, and overall performance over long distances.

24.5 dBi High-Gain Grid Antenna

Its integrated 24.5 dBi dual-polarized grid antenna concentrates RF energy into a narrow beam for reliable long-distance communication while minimizing interference. The antenna element is integrated directly into the radio, eliminating cable losses.

Lightweight Outdoor Construction

The grid reflector reduces wind resistance compared to solid dish antennas, making it ideal for tower and rooftop installations exposed to strong winds. The enclosure is designed for continuous outdoor operation in harsh weather conditions.

RouterOS Enterprise Networking

RouterOS Level 3 includes advanced routing, firewall protection, VPN support, QoS, VLANs, bandwidth management, wireless bridge configuration, monitoring, and many other professional networking capabilities.

Frequently Asked Questions (FAQs)

What is the Mikrotik LHG HP5?

The Mikrotik LHG HP5 is a professional outdoor wireless bridge that combines a 24.5 dBi high-gain grid antenna with a high-power 630 mW radio in a single weatherproof unit. It is specifically designed for long-distance wireless communication where strong signal strength and dependable performance are essential.

It is widely used by WISPs, businesses, educational institutions, government organizations, and CCTV installers.

Its integrated design minimizes signal loss while simplifying installation and maintenance.

How far can the LHG HP5 transmit?

Under ideal line-of-sight conditions, the LHG HP5 can establish reliable wireless links of approximately 30 km, although actual performance depends on antenna alignment, tower height, terrain, Fresnel clearance, weather, and interference.

For shorter links between 5 km and 20 km, it provides excellent throughput and strong signal margins.

Professional installation significantly improves long-distance performance.

What makes the HP version different from the standard LHG 5?

The HP version features a 630 mW transmitter, approximately twice the output power of the standard LHG 5.

This results in improved signal strength, better receiver sensitivity, higher fade margins, and more reliable long-distance performance.

It is the preferred option where stronger RF performance is required.

Does the LHG HP5 support Gigabit Ethernet?

No.

The LHG HP5 includes one 10/100 Mbps Ethernet port.

If Gigabit Ethernet and higher throughput are required, consider the LHG 5 ac or LHG 5 ax models.

Does it support 802.11ac or Wi-Fi 6?

No.

The LHG HP5 supports 802.11a/n (Wi-Fi 4).

Organizations requiring higher throughput should consider MikroTik's Wi-Fi 5 or Wi-Fi 6 outdoor models.

Is RouterOS included?

Yes.

The device ships with RouterOS Level 3, providing advanced routing, VPNs, VLANs, firewall protection, QoS, wireless bridge mode, monitoring, bandwidth management, and enterprise wireless networking.

No additional software license is required.

Does it support Passive PoE?

Yes.

The LHG HP5 supports Passive PoE (10–28V), allowing power and data to be transmitted over a single Ethernet cable.

A Passive PoE injector and power supply are included in the package.

Is the antenna removable?

No.

The antenna is permanently integrated into the device.

This design minimizes RF losses, improves reliability, and simplifies installation.

Can it be used for CCTV networks?

Absolutely.

The LHG HP5 is an excellent solution for connecting IP cameras over long distances where laying fibre or copper cabling would be expensive or impractical.

Its directional antenna ensures stable video transmission with minimal interference.

Is it suitable for Wireless Internet Service Providers (WISPs)?

Yes.

Many WISPs deploy the LHG HP5 for customer connections, relay stations, and rural broadband networks because of its affordability, high transmit power, and proven reliability.

Its grid antenna performs particularly well in windy environments, making it suitable for tower installations.

What comes in the package?

The retail package typically includes:

• Mikrotik LHG HP5

• Passive PoE Injector

• 24V Power Adapter

• Pole Mount Kit

• Mounting Accessories

• Quick Installation Guide

An Ethernet cable is usually purchased separately.

Where can I buy the Mikrotik LHG HP5 in Kenya?

Purchase genuine Mikrotik LHG HP5 devices from Mikrotik Kenya with:

• Competitive prices

• Professional installation

• Wireless site surveys

• RouterOS configuration

• Technical support

• Genuine warranty

• After-sales support

Video: Mikrotik LHG HP5 Overview

YouTube Video Thumbnail

https://img.youtube.com/vi/WD6F-dyHsJg/maxresdefault.jpg

Watch: https://www.youtube.com/watch?v=WD6F-dyHsJg

This video explains the Mikrotik LHG HP5 hardware, demonstrates installation, antenna alignment, RouterOS configuration, and optimization for long-distance wireless links. It also compares the HP version with other LHG models and shows how the increased transmit power improves wireless performance in challenging environments.

Whether you are building a WISP network, extending broadband to rural communities, connecting buildings across a campus, or deploying wireless CCTV infrastructure, the video provides practical guidance for maximizing the performance and reliability of the LHG HP5.

Contact Mikrotik Kenya

Location: Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi

Phone: Call/Text/WhatsApp: +254 704 991 492

Email: info@mikrotikkenya.co.ke

The Mikrotik LHG HP5 is an outstanding long-range outdoor wireless solution that combines a 24.5 dBi high-gain antenna, 630 mW high-power transmitter, RouterOS Level 3, and a rugged weather-resistant design. It is an ideal choice for wireless ISPs, enterprises, CCTV systems, educational institutions, industrial facilities, and rural broadband deployments requiring dependable long-distance connectivity.

At Mikrotik Kenya, we supply genuine Mikrotik LHG HP5 devices backed by expert consultation, professional installation, RouterOS configuration, after-sales support, and manufacturer warranty. Contact us today for the latest Mikrotik LHG HP5 prices in Kenya and let our specialists help you build a reliable, high-performance outdoor wireless network.
